Vertical End Load Cartoners

FOB Price:Price can be negotiated

Production Capacity:5sets/month

Payment Terms: TT

Update Time:2014-10-28

Contact Supplier

Product Description

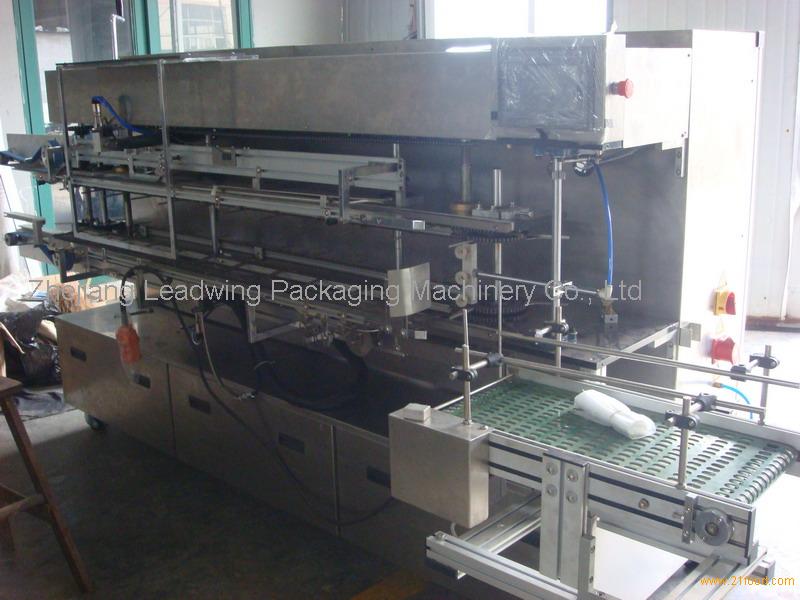

Lang="EN-US" style="font-size:18.0pt; mso-fareast-font-family:楷体_GB2312;color:red"> LX-50GZ-B Vertical End Load Cartoners

Application:

LX-50GZ-B Vertical End Load Cartoners is fully automatic, vertical type filling and sealing machine with box. LX-50GZ-B Vertical End Load Cartoners is mainly used in pack the irregular goods of particle type, including candy, tea, grain, Powder. Carton Powder Filling Machine can automatically packing and sealing meanwhile.

Feature:

1. The feeding part adopts precision gap the dispenser of mechanical 360 degree, which is controlled by OMRON PLC and SMC pneumatic element from Japan . The feeding of box will be done one by one.

2. The system of spraying hot melt glue is from Switzerland Robatech. And the vacuum pump from Germany BECKER is controlling the part of absorbing box.

3. when the hot melt applicator is spraying hot melt glue into the box, meanwhile they can count the finished products.

Technical parameters

Model	LX-50GZ-B
Capacity	60-80 box per min
Box dimension	L (100-200)mm W (70-120)mm H (50-100)mm
Thickness of Box	250-400g/m ²
Air pressure	0.6-0.8Mpa
Gas consumption	150-200L/min
Power consumption	380V 50HZ
Total Power	3.5kw
Machine Dimension	300014001600mm
Machine Net Weight	2500Kg

Other Products

Semi-automatic hot melt Glue case sealer

Hot Melt Glue Case Erector

High speed Box Packaging Machine

Hot Melt Glue Carton Sealer/Top sealer

Company Profile

Name: Zhejiang Leadwing Packaging Machinery Co., Ltd

Main Products: case sealer,case erector,carton sealer,carton erector,box packaging machine,box wrapping machine,cellphane wrapping machine

Business Type: Manufacture

Total Employees: < 20

Established Year: 2009

Total Annual Revenue: Below US$1 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: Sunlou Industrial Zone, Wangquan Town , PingYang Country

Zhejiang Leadwing Packaging Machinery Co., Ltd is an enterprise which focuses on the research, development and production of hot melt glue carton and box packaging machines. The company can make all kinds of hot melt glue case sealer and case erector, especially making the special machine for clients according to the special requirement.

The major products of Leadwing Company are Semi-automatic hot melt case sealer , fully automatic carton forming and sealing machine, High-speed Plastic Wraps Boxing Machine, Aluminum Foil Roll Packaging Machine, Powder and Grain Filling Machine and so on. Especially High-speed Plastic Wraps Boxing Machine received national patent. Which is the best Preservative Film Roll wrapping Machine at present in China. The products can be widely used to packing pharmaceutical, commodity, cosmetic, food, hardware and so on.

The products of Leadwing Company are sold in many countries with good quality and reasonable price. Wish our machines can satisfy you and we can cooperate successfully.
