1.Yogurt sterilizing Machine
2.Capacity:150kg/h
3.Electric heating type
4.Used in milk bar
5.Make good Fresh Milk

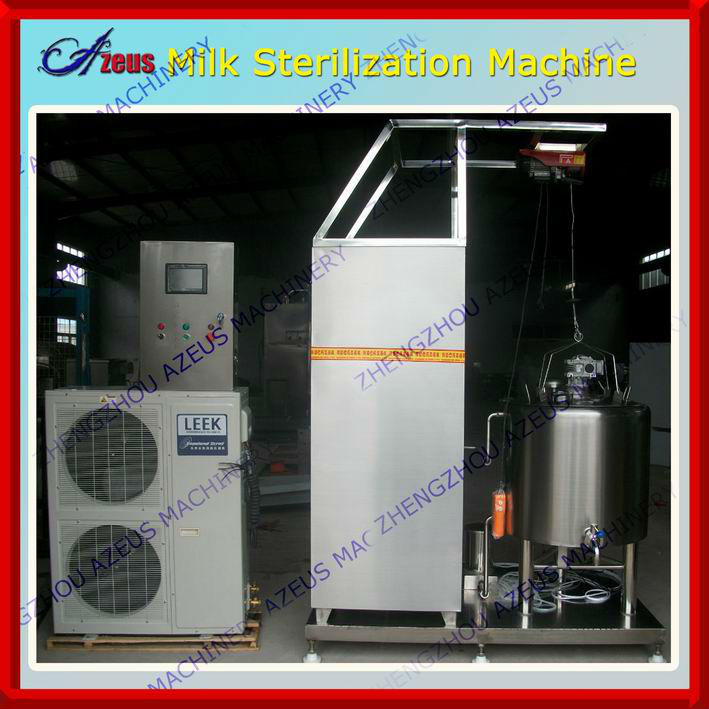

Yogurt Sterilizing Machine
Feature:
1. The main body is made of 304 stainless steel.
2. The Sterilization time can be adjustable in the range of 5-40 minutes. And the sterilization temperature is adjustable from 50-99 °C with automatic temperature control device.
3. The sterilization water tank is added thermal retardation device and temperature compensate device, to ensure the temperature in water tank.
Structure:
The machine is consist of water recycling container and milk jar, compressor and pump.
Water recycling container: the cold water is on the top and hot water under, it is cooled by compressor.
Milk jar: The outside is insulation layer, middle is hot water sterilization layer and the inside is milk.
Working process:
1) Setting up water and milk temperature
2) When the water temperature is up the setting temperature, the cold water will enter through recycling pump; thereagainst, the hot water will run in.
3) There stirring device up the milk jar, the milk is heated evenly through stirring.
Parameter:
Model |
AZSSJ100 |
AZSSJ150 |
Barrel dia |
φ500 |
Φ640 |
Capacity |
100KG/H |
150KG/H |
Thickness |
1.5mm |
1.5mm |
Sterilization time |
5-40min adjustable |
5-40min adjustable |
Sterilization temperature |
50-99°C |
50-99°C |
Rate of compressor |
3KW |
3KW |
Heating type |
Electric heating |
Electric heating |
Heating time |
25-35min |
25-35min |
Power |
13KW |
16KW |
Height of machine |
1650mm |
1650mm |
Material |
304SUS |
304SUS |
Size |
1700x1000x1710mm |
1700x1000x1710mm |
Processing: |
Sterilizer
|
Condition: |
New
|
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
AZEUS
|
Model Number: |
AZSSJ150-5
|
Processing Types: |
Milk
|
Power(W): |
16KW
|
Dimension(L*W*H): |
1700x1000x1710mm
|
Name: |
Yogurt sterilizing machine
|
Material: |
304SUS
|
Capacity: |
150KG/H
|
Heating type: |
Electric heating
|
Heating time: |
25-35min
|
