ZYQW Horizontal Airflow Cinnamon Powder Separator Machine,China zhenying price supplier

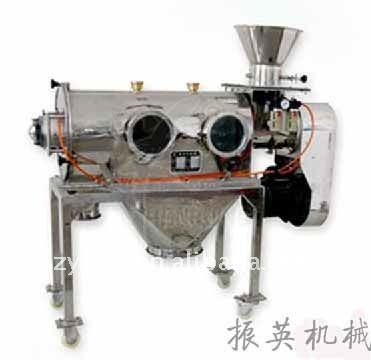

ZYQW Horizontal Airflow Cinnamon Powder Separator Machine
FOB Price:Price can be negotiated
Production Capacity:200 Set/Sets per Month As customer'
Update Time:2014-09-26
Product Description

1.Free from vibration and noise
2.Free from dust and performs in high efficiency
3.ISO 9000:2008 & CE Certified

ZYQW Horizontal Airflow Cinnamon Powder Separator Machine

Description



The cylinder screen mesh of this device is placed inside the machine. The materials enter the net tube with airflow mixed and atomized after passing the screw conveying system; some of the materials are sprayed through the net and discharged from the fine stuff portal by the centrifugal force and cyclone propelling power, which are caused by the rotor vane inside the net tube. Other materials which cannot cross the net, are discharged from the rough stuff portal along the net tube wall.

Applied fields


The machine is available in the industries such as metallurgy, mining, pharmacy, food, chemical engineering, metal powder and nonmetal powder etc.



Features
  • The whole machine is in a small size and light so that it is stable in operation, free from vibration and noise, and with its good sealed structure, it is free from dust and performs in high efficiency.
  • The shell of machine is in a new design which makes it easy to install and convenient to control.
  • The machine can operate either in a single unit or  multiple units, and it is safe and reliable for a long time operation.
  • The screen-mesh can be cleaned automatically by cyclone.
  • The machine has the function of re-crashing the agglomeration materials.
  • The new type roller bearing can prolong the service life.
  • The machine can work with the pneumatic conveying systems, and materials can be directly sent into the wind path to save resources.
  • New design: The airflow protection system can transfer the purified air to the two ends of the device, which will reduce the temperature created in the operation of the device.
  • It will form the air-isolated layer to avoid the powder entering the bearing so as to prolong the service life of the bearing effectively, reduce the maintenance frequency, and increase work efficiency.
  • The machine can be specially designed to meet special requirements.
  • ZYQW Horizontal Airflow Cinnamon Powder Separator Machine

   Technical Parameters



ZYQW Horizontal Airflow Cinnamon Powder Separator Machine

ZYQW Horizontal Airflow Cinnamon Powder Separator Machine

Model

A

B

C

D

E

F

G

H

I

J

ZYQW18-65

1430

460

420

1005

135

230

250

330

340

210

ZYQW25-85

1845

655

766

1240

320

285

300

350

380

290

ZYQW50-130

2230

870

790

1775

280

515

150

660

400

485





ZYQW Horizontal Airflow Cinnamon Powder Separator Machine

Place of Origin:
Henan China (Mainland)
Brand Name:
zhenying
Model Number:
ZYQW
Type:
vibrating screen
Certificate:
ISO9001:2008;CE
Material:
SUS304/316L or carbon steel
Screen mesh:
60-500mm
Layers:
1 layer
Voltage:
380V
Current:
AC
Frequency:
50Hz
Warranty:
1 year
Cleaning system:
airflow cleaning
Function:
stable
