Vision plastic color sorter
1.2048 pixel ccd
2.Detecting area 0.02 square millimeter
3.Superb after-sale service
2014 new products CCD camera vision plastic color sorter with large capacity
1. Quick Detail:
Name: soybean Color Sorter
Brand: Jietaizhineng
CCD Sensor :Toshiba
Valve: Matrix,SMC,JIETAI
Camera: Phoenix made in Thaiwan
Service: Superb after-sale service
2. Description:
Jietai Zhineng Intelligent Technolgoy Co.,Ltd Originate from Thailand ,Which has nearly 10 years of mature experience of the grain processing ,machinery production,research design and installation.
OEM and ODM orders are welcomed.The goods can be manufactured according to your own designs,colors and sizes,as long as you could offer us pictures and sizes. Also,any images or logo printings are available.
Total color sorter quality warranty is 1 year. The LED light is 2 years
3. Applications:
All kinds of Beans ,Coffee bean , Peanut ,Soybean , Beans Sorting
4. Specifications
| Model |
JTDM-CCDR5 |
| Throughput(T/H) |
3~7 |
| Voltage |
220V/50HZ |
| Power (kw) |
1.4- 3.5 |
| Sorting Accuracy(%) |
≥99.99% |
| Secondary optimized carryover |
≥8:1 |
| Air pressure(Mpa) |
≥0.6 |
| Air consumption (L/min) |
1500-3000 |
| Machine weight(kg) |
1300 |
| Package |
wooden case |
5. Why to choose US ?
(1)Chip--Top Computering and processing power
Chip is Importing from America.
Perfect hardware system architechture of ARM+FPGA become the super brain of Color
sorter
Powerful computing capacity is enough to cope with supter-large untrafast data operation
Flexible processing capability can quickly customize a variety of image processing
(2) Operation Interface--Simple and Easy
Multilingual operation Interface
Super 10 inch screen for color and black-and-white,more flexible in touch and quick in
operation
Many setting modes to meet the demand for the more color sorting algorithm
(3) Light source technology--most advanced in china
Cutting-edge LED optical design system,a variety of light sources are optional to suit
different materials
Designated procument of double-row imported intensive LED lights
Higher stablility,longer service life
LED lighting system with radiator
(4) Chute----Special Technology
Super wide 330mm,80 channels ,more capacity and more accurate demanding for color
sorting
Special oxidation treatment, international advanced level.
80 light channels , it can be cascade when the capacity is large
(5) Camera--best in the industry
Imported high-end 2048PIXELS CCD sensor
Internationally renowned top lens manufacturer tailors lens according to the technical
requirments for our ccd color sorter .
In China, we are the first to apply true color of three primary colors on CCD.
Tiny spots smaller than 0.04mm2 can be identified.
(6) High-frequency solenoid valve --The leading domestic
Cooperate with leading international partner, specially designed and customized
High-quality original solenoid valve, consistency close to zero error.
Service life of more than one billion times.
Ultra-high precision, leading in China
(7) Triangle background board--Innovative , Patent.
Three-hundred -sixty -degree colntro to sort diverse materials
Super model and small model is common ,no replacement
Using the triangle principle,more stable,no deformation
The Technical Specification is as following:

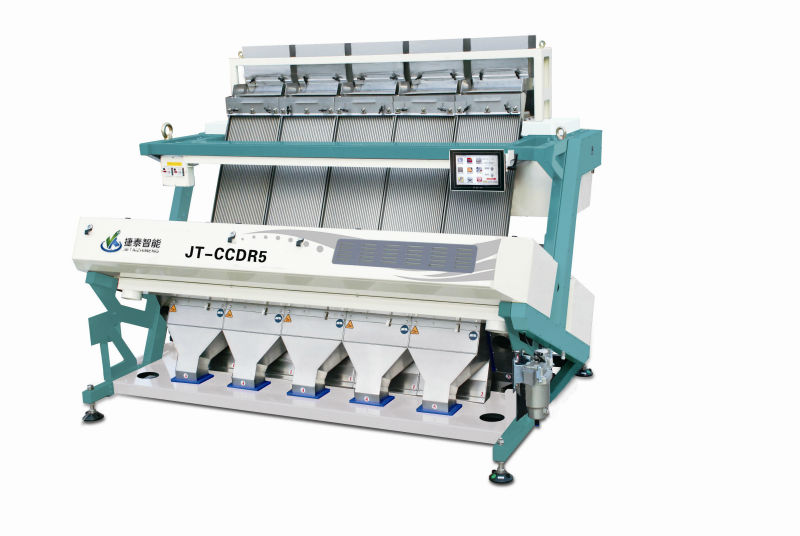

Machine Show
Application
Factory and our service team
Choose us Benefit yourself
JIETAI look forward to work with new and old friends to build a long term cooperation and win-win relationship
Contact information :
Mobile:+8618949853294
+8618855183582
Tel: 0086 551 68121778
Skype:dawnqian02061
QQ:86865631
Website: http://www.ahjietai.com
| Condition: |
New
|
Place of Origin: |
Anhui China (Mainland)
|
Brand Name: |
JIETAI
|
| Model Number: |
JT-CCDR5
|
Production Capacity: |
3~7 T/h
|
Voltage: |
AC220V,50hz
|
| Power(W): |
1400- 3500
|
Weight: |
1300kg
|
Dimension(L*W*H): |
2319*1520*1800MM
|
| Warranty: |
1 year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Detect system: |
doublesides cameras
|
| Chutes: |
105 Channels
|
Sorting accuracy: |
99.99
|
Secondary Optimized Carryover: |
8:1
|
| Air pressure(Mpa): |
0.6
|
Air Consumption: |
1500~3000
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
