automatic juice filling line,China Winmark price supplier

automatic juice filling line

FOB Price:Price can be negotiated

Production Capacity:50 Set/Sets per Year for automatic jui

Payment Terms: US $30,000 - 100,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

automatic juice filling line
1.Used for juice or tea
2.Capacity:2000~30000bph
3.technology from Germany
4.CE,ISO,SG

automatic juice filling line

1.Direct connection technology is used between air Conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor. It is easy to change the size of bottles.

2 This juice bottling equipment, it is a fully automatic and multi-functions combined machine, which integrats bottle rinser, filler and screw capper in one unit. It is suitable for filling non carbonated beverage, such as fruit juice, wine, mineral water, pure water and tea.

3. The head of this juice bottling equipment is made of better stainless steel, which is firm and endurable.

4. The whole juice bottling equipment has many unique designs. It is the best beverage machine in China at present.

5. Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to change the size of bottles easily, without adjusting the equipment height.Only arch board and star wheel such little nylon parts need to be changed.

6. This juice bottling equipment is for fruit juice, tea beverage, etc.

7.The juice bottling equipment is mainly used in the beverage filling operations.The three functions of bottle washing, filling and capping are composed in one body of the machine.

Technical parameters:

Model	Washing heads	Filling heads	Capping heads	Capacity ( b/h)500ml	Powe r ( KW )	overall dimension (mm)
RCGF16-16-6	16	16	6	3000-4000	2.2	2400X1800X2400
RCGF18-18-6	18	18	6	4000-5000	3.1	2500X1850X2400
RCGF24-24-8	24	24	8	7000-8000	3.8	2900X2150X2400
RCGF32-32-12	32	32	12	10000-11000	5.6	3600X2500X2400
RCGF36-36-12	36	36	12	11000-12000	6.5	3750X2600X2400
RCGF40-40-12	40	40	12	14000-15000	7.2	4000X2800X2400

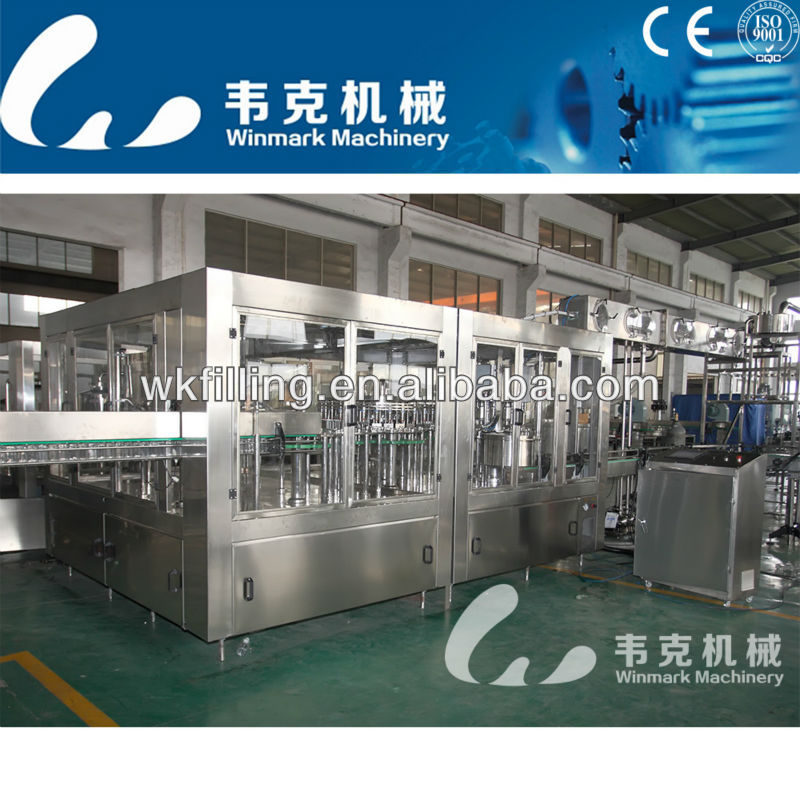

the picture of the juice filling machine:

About pretreatment system of the juice filling:

the flow chat: sugar melting tank→ syrup filter→ beverage pump→blending tank→vacuum deaerator→high pressure homogenizer→UHT sterilizer→juice tank

Zhangjiagang Winmark High Quality Juice Bottling Equipment/Machine

> Package&Delivery

How to get your suitable machine or Production Line ?

Please reply to the following questions, do it and give your answers to us as possible as you can.

1.What kind of products will you produce?

2. What kind of product sze: volume ,height ,neck diameter ,diameter of bottle or other please inform us of details .

3. What is the capacity(per hour) you want ?

4. Single machine or whole production line .

5. Your power supply

then we can offer you more detailed quotation and other information you need .

What Winmark Machinery Co.,Ltd can offer you ?

Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water Treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.

Winmark Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line installation to operator training and other after-sales services .

Condition:	New	Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Winmark
Model Number:	RCGF	Voltage:	380V	Power(W):	3.8KW
Weight:	4000KG	Dimension(LWH):	295021502400	Processing Types:	JUICE
Processing:	FILLING MACHINE,Other	Certification:	CE ISO,CE ISO	Warranty:	1 year
automatic juice filling line:	automatic juice filling line	packing type:	bottles	control:	PLC control
driven type:	eletric	quality:	technique from Taiwan	capacity:	2000bph-20000bph
material:	stainless steel304	applicable:	200ml-2L

Other Products

automatic juice filling line

Automatic Carbonated Drink Bottle Filling Machine

Company Profile

Name: Zhangjiagang Winmark Machinery Co., Ltd.

Main Products: Filling Machine,Water Treatment,Packing Machine,Carbonated Drink Production Line,Drinking Water Production Line

Business Type: Manufacturer, Trading Company

Total Employees: 11 - 50 People

Established Year: 2012

Main Markets: Domestic Market, South Asia, Northern Europe, Western Europe, Eastern Asia

Address: Guotai Easten Plaza 706

Zhangjiagang Winmark Machinery Co., Ltd. is a joint venture. We are a professional manufacturer and exporter of middle-small type beer and drink filling equipment. We have a basic manufacturing base in local city.

Our company persists in taking markets as guidance, taking science and technology as head, taking the quality as main line and taking service as guarantee, to set up a complete quality guarantee system. We have passed ISO9001-2000 International Quality System Certification. We are equipped with perfect testing and inspecting facilities.

Our company has a high-quality technology development team and production experience. There are totally 20 special engineers working for developing and designing. Main techniques come from Italy, France and Germany and also combine Chinese real country situations. We have researched and developed high-starting and advanced technical liquid filling equipment. The automatic level could achieve the level of the end of 1990. Our company's after selling dept. specially takes charge of installation, debugging, maintaining and repairing our equipment. Also after selling dept. is the window for connecting clients. The sentence of "we're the clients" makes all service staff consider for users all the time, and put users in heart. Then they realize the exact meaning of "clients are god".

Our company supplies pure draft beer production lines with capacity 2,000-10,000BPH; common beer production lines with capacity 2,000-20,000BPH; PET bottle fresh draft beer production lines with capacity 2,000-20,000BPH; tea & juice hot filling production lines, pure water & mineral water filling lines, and carbonated drink production lines, with capacity 2,000-20,000BPH; can beverage production lines with capacity 0-280CPM; 3-5 gallon barrel water filling lines with capacity 50-600BPH, and all kinds of matching equipment. And we could supply all turnkey projects.

Our equipment users are over 200 all over more than 20 provinces, cities and municipalities in our country. Meanwhile, we export to Japan, the Middle East, Southeast Asia, South Africa, Russia, etc. Besides producing and selling equipment, we supply all kinds of technical services, help clients design the plant layout, answer clients' technical questions, teach the users techniques, direct operations, etc.
