Wine machine
1. CE SGS
2. Fill speed: 6000-12000
3. Install training with translator
4. Free replace parts for 1 yea

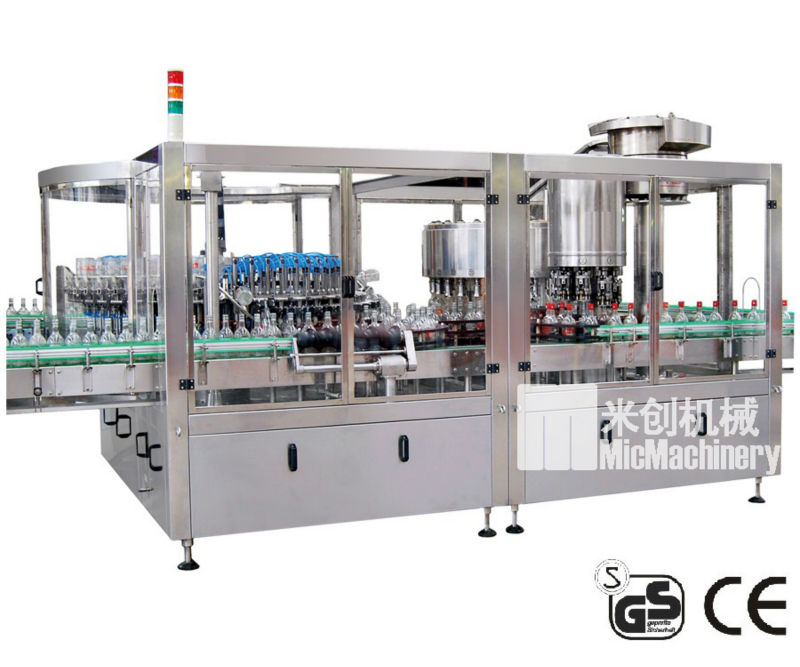

MIC automatic 4 in 1 Red wine machine
wine machine parameters
Model |
Capability (b/h) |
Washing part
|
Filling part |
Capping part |
Power |
Dimensions |
||||
Water consumption (m³/h) |
Air consumption (m³/h) |
Head No. |
Type |
Head No. |
Type |
Head No. |
||||
CGF 30-24-8 |
6000 |
2.1 |
1.1 |
30 |
Cup Type filling |
24 |
Cap sealing |
8 |
5.4 |
3950*2200*2700 |
CGF 40-30-8 |
8000 |
2.9 |
1.3 |
40 |
Cup Type filling |
30 |
Cap sealing |
8 |
5.4 |
4500*2750*2700 |
CGF 48-36-8 |
10000 |
3.5 |
1.3 |
48 |
Cup Type filling |
36 |
Cap sealing |
8 |
6.4 |
5000*3150*2700 |
CGF 60-40-8 |
12000 |
4.4 |
2 |
60 |
Cup Type filling |
40 |
Cap sealing |
8 |
7.5 |
5500*3650*2700 |
Wine machine Performance:
1. High efficiency and low cost.
2. Fully automatic control and high hygienic design.
3. Excellent and stable product quality.
4. Saving work space and manpower for users.
5. Easy maintenance and high safety standard.
6. Both plastic anti-counterfeiting cap and aluminum cap can be used in this machine
Wine machine is packed with export wooden case.
We will offer our technician for oversea wine machine installation and training service.
we can also provide our Sales as translator to your site help the installation and Training. Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
Thank you for choosing MICMachinery Company.
We have doing wine machines for 8 years, after the company recombination, the wine machine we sold to europe, africa, the america states and south america. we can guarantee our bottling machine line for years running with steady working.
We provide 8 hour action, 24hours solution after sale service, in order to avoid the time difference bring the economic and trust lost to our clients.
For Wine machine question:
First of all, before we operate wine machine , to clearly understand the instructions clearly wine machine , first read through the instructions again, adjust and use the familiar wine machine , the operating time must be in strict accordance with the instructions to wine machine instructions , pay attention to details of the problem , certainly the details determine success or failure .
Secondly , in accordance with the instructions on the machine for regular repair and maintenance of the wine bottling machine fuselage Oil it , so wine bottling machine body as far as possible to protect the reservoir , so that the air can be isolated to avoid wine machine rusty , well protected wine machine body, and this is a way to extend the life of the 3 in1 bottling machine .
Once again, we have to pay attention to hot stand -sealing cloth for cleaning, not retained foreign body in the above , to ensure clean wine bottling machine try to avoid the amount of material for a long time into the mouth of the left cause corrosion .
Fourth, we should always check the machine to see contacts at various parts of the machine is good, important to ensure safe use of electricity , no electricity properly to prevent harm .
Fifth, if found faulty , we have to turn off the power , when necessary, by pressing the emergency stop button , and then deflated Lift cover, and then close the voltage , check the reason , and troubleshooting.
Detail picture of wine machine:
Washing parts of wine machine:
Sealing part of wine machine
Screwing part of wine machine
Type: |
Filling Machine,glass bottle wine machine
|
Condition: |
New
|
Application: |
Beverage,Glass bottle wine bottling machine
|
Packaging Type: |
Bottles,Glass bottles
|
Packaging Material: |
Glass
|
Automatic Grade: |
Automatic
|
Driven Type: |
Mechanical
|
Voltage: |
380V 50HZ
|
Power: |
6.4Kw
|
Place of Origin: |
Zhejiang China (Mainland)
|
Brand Name: |
MIC
|
Model Number: |
CGF-30-24-8-8
|
Dimension(L*W*H): |
5300*2180*2700
|
Weight: |
5T
|
Certification: |
CE,SGS
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Model: |
MIC-CGF30-24-8-8
|
Filling speed: |
6000 bottle per hour
|
Water consumption: |
2.1 m3/hour
|
Air consumption: |
1.1 m3/hour
|
Filling head: |
24 nozzle
|
Sealing part: |
Cap pushing and Cap sealing
|
Wine machine part: |
Cup filling type
|
Power consumption: |
6.4Kw per hour
|
Washing head: |
30 nozzle
|
