OR Series 2014 Newest Plate Type /milk sterilizing machine

FOB Price:Price can be negotiated

Production Capacity:10 Unit/Units per Month

Payment Terms: US $500 - 10,000 / Unit

Update Time:2014-09-19

Contact Supplier

Product Description

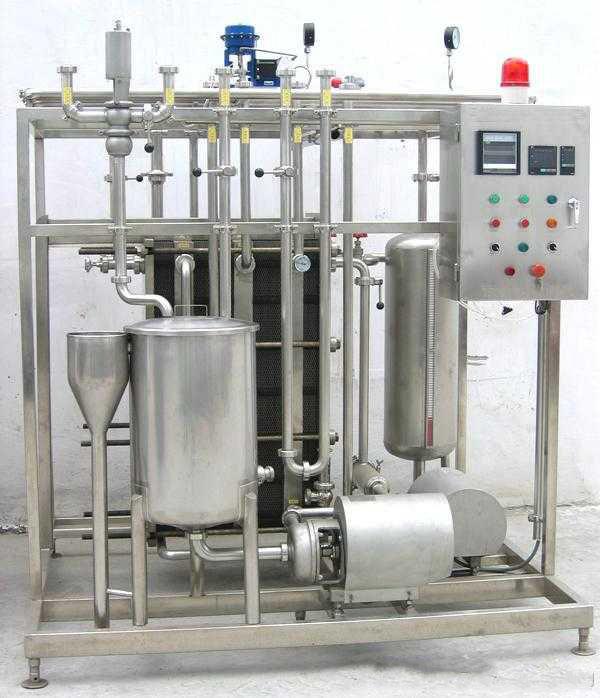

OR Series Plate Type Sterilization Machine

Brief introduction:

1. The machine can sterilizing liquid substances like Chinese rice wine, condiment, soy etc;

2. The machine adopts heat recovery technology, make the substances tastes good;

3. The entire unit adopts stainless steel material, making sure that the machine meet with the requirement on

the drinks hygienic standard;

4. Good heat transfer effect, high heat recovery, less energy consumption;

5. The main control components, valve parts and Accessories are imported parts, with long life.

6. Adopting PLC control, equipped with the automatic backflow system, ensuring materials achieving sterilization effect by 100%;

7. Simple structure, easy to clean, convenient operation, low cost of maintenance.

8.Classification of Plate Sterilizer: Automatic configuration and Semi-automatic configuration

Technical Parameters:

Model	OR-1	OR-2		OR-3		OR-4		OR-5
Capacity	1t/h	2t/h		3t/h		4t/h		5t/h
Heat exchange area	16m²	26m²		38m²		46m²		56m²
Material inlet temperature	5° C
Material outlet temperature	5° C
Sterilizing temperature	137° C
Heat preservation time	4 seconds
Cool water temperature	1 ° C
Cool water consumption	3t/h		4t/h		6t/h		8t/h	12t/h
Weight	980kg		1080kg		1160kg		1350kg	1680kg
Power	3KW		4KW		5KW		6KW	7KW

Condition:	New	Place of Origin:	Henan China (Mainland)	Brand Name:	orangemech
Model Number:	OR	Type:	Sterilization Machine	Certification:	ISO
