pasteurize sterilizer

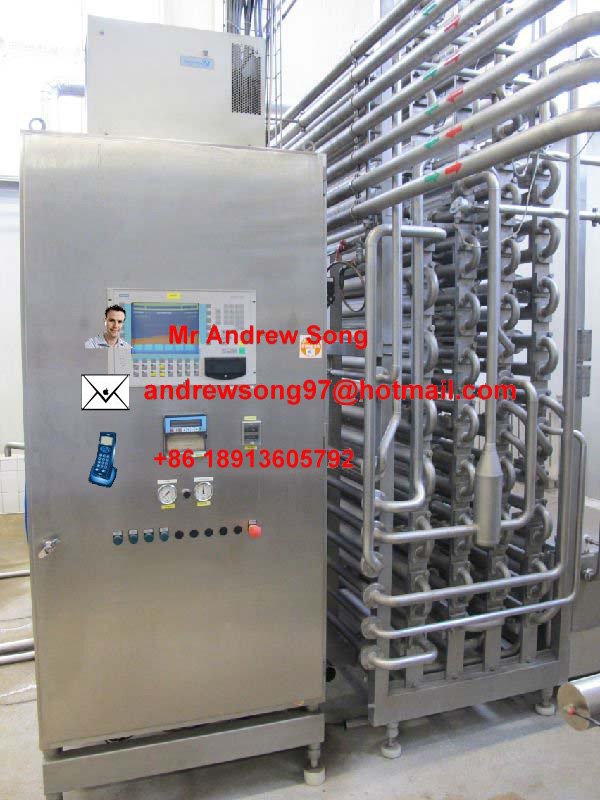

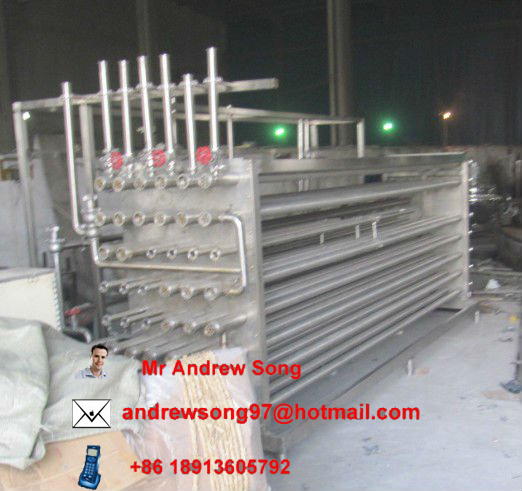

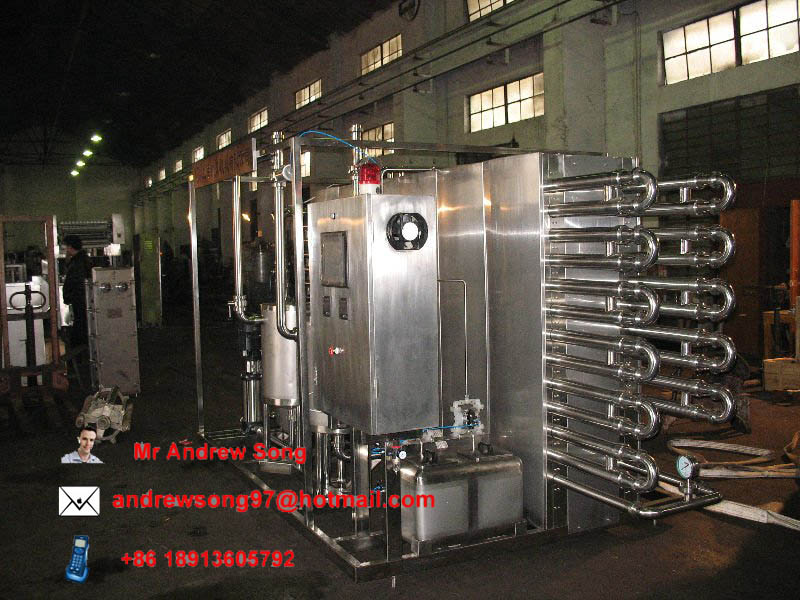

Tubular UHT Sterilizer
Good Pasteurizer effect
Fully Automatic
small energy consumption
pasteurize sterilizer
Features:
1-Continuous and circular working. Can circumfluence automatically in the filling machine.
2-Made of whole SS.
3-With CIP system
4-Adopt rotor pump to transfer Materials
5-AIS316 material for plates, EPDM materail for mat, food grade
Parameters:
Cpacity | 3T/H |
Materials | Juice, milk, concentrated juice etc. |
Input temperature | 20°C-30°C |
Sterilization temperature | 95-98°C |
sterilization time | 30s |
Output temperature | 15-18°C |
Power | 380VAC 50HZ 15KW |
Steam | 6-8bar 300kg/h |
Hot water | 15m3/h |
Cold water | 15m3/h 7°C |
Cooling watere | 15m3/h |
Compressed air | 6-8bar 2m3/h |
Dimension | 4*2.5*2.5m |
Weight | 1500kg |
Condition: |
New
|
Place of Origin: |
Jiangsu China (Mainland)
|
Brand Name: |
Xiongwang
|
Model Number: |
KQ
|
Usage: |
Juice
|
Voltage: |
380V/50HZ, customizable
|
Power(W): |
according to different models of machine
|
Weight: |
according to different models of machine
|
Dimension(L*W*H): |
according to different models of machine
|
Certification: |
CE/ISO
|
Warranty: |
one year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Brands of Electric Parts: |
SIEMENS, MITSUBISHI, etc.
|
