pasteurizer for milk

FOB Price:Price can be negotiated

Production Capacity:10000 Piece/Pieces per Year

Payment Terms: US $3,000 - 100,000 / Piece

Update Time:2014-09-19

Contact Supplier

Product Description

Pasteurizer for milk
UHT pasturizer euipment
Good pasteurizer effect
Fully Automatic
small energy consumption

pasteurizer for milk

1. Description of milk pasteurizer for sale

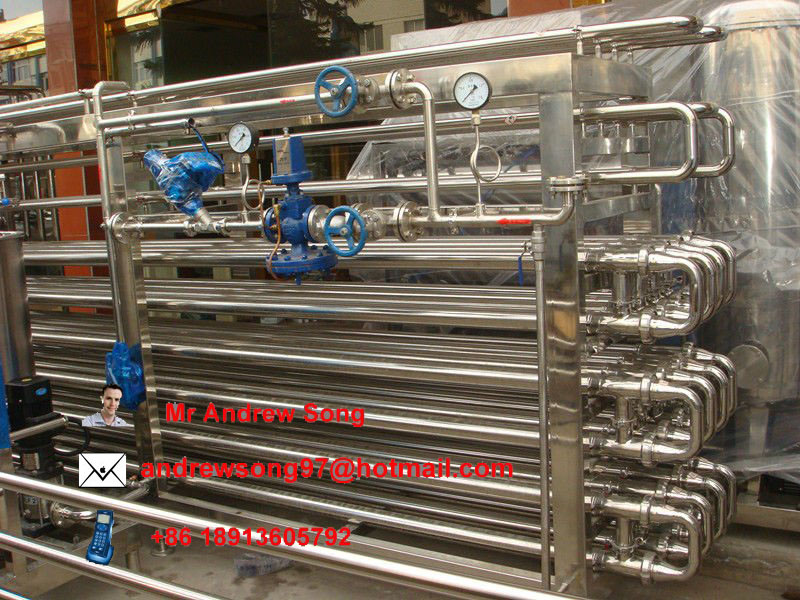

Sterilizing process of tubular ultra-high temperature sterilizer (for short as UHT) is not only suitable for common goods but can also be customized to meet customers' individual requirements. It will use an ultrahigh temperature of 120-140 for a UHT pasteurization.

2. Characteristics of milk pasteurizer for sale
1). It's not easy to get burnt but can keep running for a longer time;
2). Adoption of PLC control makes the whole operation simple and accurate;
3). Through the touch screen display you can have a overall view about it and the internal CIP cleaning system made it easy to clean;
4). Reliable Materials, high bearing capability and lower cost of maintenance.

3.Technical parameters

name	unit\model	TG-7-1.6-35	TG-7-1.6-45	TG-7-1.6-58	TG-7-1.6-72
production capacity	t/h	2	3	4	5
heat exchanging area	m2	35	45	58	72
temperature of material inlet	degree	5	5	5	5
temperature of material outlet	degree	25	25	25	25
sterilizing temperature	degree	95-137	95-137	95-137	95-137
heat preservation period	S	15-4	15-4	15-4	15-4
ice water consumption	multiple	3	3	3	3
cooling water consumption	multiple	2	2	2	2
energy consumption	kw	10	10	12	14
outline dimension	mm	450019001880	450019001880	450019001880	650020001880

Condition:	New	Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Xiongwang
Model Number:	TG	Usage:	Milk	Voltage:	380V/50HZ, customizable
Power(W):	according to different models of machine	Weight:	according to different models of machine	Dimension(LWH):	according to different models of machine
Certification:	CE/ISO	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas
Brands of Electric Parts:	SIEMENS, MITSUBISHI, etc.

Other Products

pasteurization machine

pipe type uht sterilizer

uht sterilizer machine

uht plate sterilizer

Company Profile

Name: Zhangjiagang Baixiong Beverage Machinery Co., Ltd.

Main Products: beverage machine,water treatment machine,unscrambler,Drink mixer

Business Type: Manufacturer, Trading Company

Total Employees: 51 - 100 People

Established Year: 2000

Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa

Address: Sanxing Non-governmental Business Developing Zone, Zhangjiagang City, Jiangsu Province, China

Zhangjiagang Baixiong Beverage Machinery Co., Ltd. is located in the Yangtze River Delta, only one hour's driving time from prosperous Shanghai City. Thus, the water and land transportation is very convenient for us to offer timely delivery.

We focus on scientific research, design, manufacturing and after-sale services, specializing in producing beverage machinery, water treatment equipments.

We sincerely provide customers with various types of whole-set production lines for the filling and capping of purified water, mineral water, aerated beverage, fruit juice and wine bottles.
We adhere to the tenet of "the market as our orientation, science and technology as the leading role, services as the warranty, and integrity as the cornerstone". Meanwhile, we firmly hold to the ideal that "today's quality is tomorrow's market", and strive to win our customers' trust.

Our products have been sold to clients in 20 provinces, cities and autonomous regions around China. Furthermore, we have also exported to South Korea, Saudi Arabia, Jordan, Turkey, New Zealand, Russia, Mexico, Pakistan and Ghana.

Welcome all customers, old and new, to contact us for more details, we look forward to hearing from you in the near future. more
