Rice Color Sorting Machine CCD Rice Color Sorter,China DINGXN price supplier

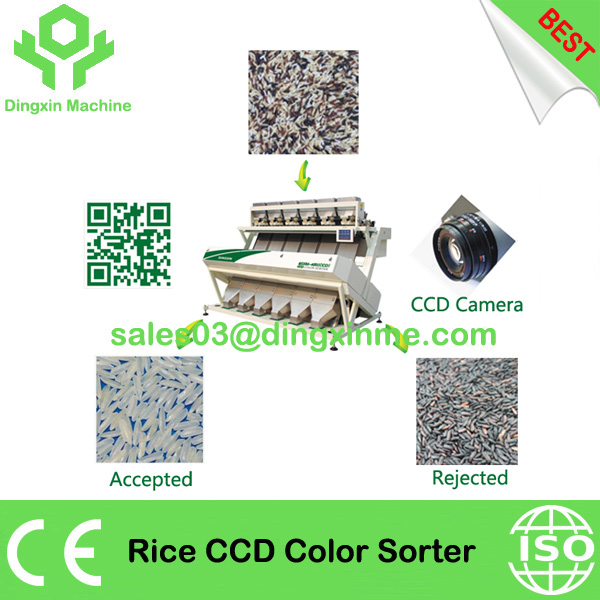

Rice Color Sorting Machine CCD Rice Color Sorter

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Week

Payment Terms: US $10,000 - 30,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

Rice Color Sorter
Double-side color sorting
High integration level
Simple&easy to operate
Perfect self-inspection function

CCD Rice Color Sorting Machine

1. Adopt PHOTO-SENSOR double-side color sorting technology; the specialized image acquisition and processing system computers and processes the spectral parameter and the feature of the image in high speed; adopt bus structure, with higher signal consistency and capability of resisting disturbance, better stability, and simpler structure;

2. Adopt mainstream high-density high-capacity scene programmable logic device, with higher integration level, more easier upgrading of software and hardware; flexible sorting modes setting available for different raw materials to meet the demands of sorting discolor, discolor reverse, milky, milky reverse, milky & yellow; accurately distinguish tiny rice macula and light yellow color shading;

3. Adopt real color 8.4 display; equipped with high-reliability four-wire resistance touch screen; correct location of touch screen at any time; user-friendly operation interface; simple and easy to operate;

4. Perfect self-inspection function realizes real-time tracking and malfunction indication of spray valve system, working pressure, constant temperature system and illumination system.

5. Notes: The color sorting performance parameter in the above table takes Standard Grade 1 Japonica Rice (Cereal content: 2%) as example. The specific parameter may be different according to different materials and cereal contents.

Major Technical Parameters:

Machine Type	AMD-SS-160Z	AMD-SS-240Z	AMD-SS-320Z
Model	6SXM-160	6SXM-240	6SXM-320
Throughput(T/h)	4.5±40%	6±40%	8.5±40%
Sorting Accuracy(%)	>99.99	>99.99	>99.99
Re-sorting Optimized Carryover(bad:good)	>8:1	>8:1	>8:1
Voltage	AC220V 50HZ	AC220V 50HZ	AC220V 50HZ
Power (kw)	0.8-1.8	1.2-2.5	1.5-3.0
Air Pressure (Mpa)	≥0.6	≥0.6	≥0.6
Air Consumption(H/min)	800-1800	1200-2800	1500-3000
Weight(kg)	850	950	1000
Overall Dimension(mm, L×W×H)	1346×1010×1890	2066×1010×1890	2066×1010×1890

Condition:	New	Place of Origin:	Hubei China (Mainland)	Brand Name:	DINGXN
Model Number:	6SXM	Production Capacity:	4.5~8.5T/h	Voltage:	220V
Power(W):	0.8~3KW	Weight:	850~1000 Kg	Dimension(LWH):	134610101890, etc
Certification:	CE & ISO	Warranty:	10 years	After-sales Service Provided:	Engineers available to service machinery overseas
Air Pressure:	≥0.6	Sorting Accuracy:	99.99%	OEM/ODM:	Yes
Color:	Blue, Green, etc
