Tilting type beef steam cooking kettle,China DF price supplier

Tilting type beef steam cooking kettle

FOB Price:Price can be negotiated

Production Capacity:120 Sets/Month

Payment Terms: FOB/CIF

Update Time:2025-07-03

Contact Supplier

Product Description

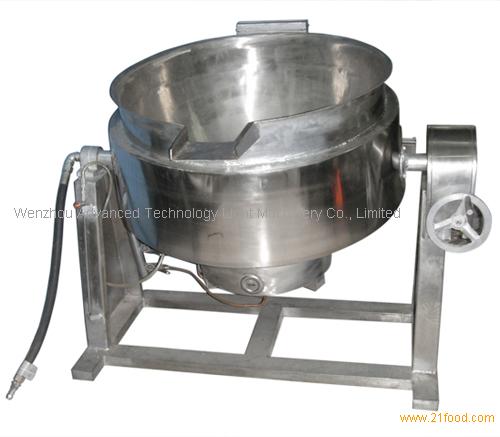

Tilting type beef steam cooking kettle

steam cooking kettle, jacket kettle cooking , industrial beef cooker

USAGE :

Tilting steam heating jacketed kettle is also named tiliting steam heating double layer cauldron. Now it has been widely applied in food processing such as candy, medicinie, dairy, alcohol, cake, beverage, sweermeat, can, etc., Some large restaurants and canteens also use it to boil soup, cook, stew and porridge. It is considered to be the ideal equipment in the area of improving quality, Shortening the time and improving working conditions.

CLASSIFICATION :

1. Structure: there are Tilting Jacketed Kettle and Vertical Jacketed Kettle

2. Heating: there are Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating

Jacketed Kettle

3. Process Need: there are Jacketed Kettle with Agitating and ones without Agitating

STRUCTUR :

Tilting Jacketed Kettle is mainly composed of pot and tilting frame; and the pot is the double layer structure

formed by inside and outside spherical pot; middle layer can add steam to heat.

Material:

a) Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint

b) The whole machine is made of stainless steel ( SUS304/SUS316L)

CHARACTERISTICS :

Efficient Heating Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as

big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating

temperature etc.

Safety and Convenience

Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and

acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.

Model	50L	100L	200L	300L	400L	500L	600L	800L	1000L
Material	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304
Depth of Pot(mm)	400	450	530	630	680	730	780	830	900
Heating area(m2)	0.45	0.58	1.12	1.42	1.75	2	2.3	3.2	3.9
Electric power(kw)	9	9	15	18	18	24	24	27	30
Evaporating quantity(kg/h)	30	40	65	75	100	150	200	250	280
Working pressure	≤0.09Mpa
Stirring speed	36 r/min
Stirring power(kw)	0.55	0.55	0.75	1.1	1.1	1.5	1.5	2.2	2.2

NOTE:

1. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’

requirement.

2. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material,

working pressure, temperature, st irring speed, s pecific requirements, etc.
