YB-350 Advanced Automatic Lollipop Candy Packing Equipment (0086-13611835825),China YB price supplier

YB-350 Advanced Automatic Lollipop Candy Packing Equipment (0086-13611835825)
FOB Price:Price can be negotiated
Production Capacity:100 Set/Sets per Month s customers'
Payment Terms: US $8,100 - 8,700 / Set
Update Time:2014-09-25
Product Description

Advanced Automatic lollipop Candy Packing Equipment
1.PLC control
2.Speed: 120pcsmin
3.Warranty:1 year
4.CE

  YB-350 Advanced Automatic Lollipop Candy Packing Equipment





Features:

1. Ball lollipop packing machine is an ideal choice for packing ball lollipop. It is featured with logical structure, easy operation, and good sealing etc.



2. This machine is mainly composed of automatic sorting device, packing paper color code auto tracking system, standard tongs, lollipop conveyer chain, paper packing device, packing knot, rotating plate device, and heat sealing knotting device.



3. With state-of-art technology, stable performance, and high performance cost rate, this machine not only could reduce labor cost, but also could increase the sanitary standard and packing quan lity of candy, which could considerably increase the production efficiency of the enterprise.



4. The color code tracking system of trademark corrector is controlled by microcomputer, and featured with correct and reliable operation, coordinated acting on paper feeding, wrapping paper, heat sealing, knotting etc.



5. This machine would pack the candy properly even in case of curled paper. With step motor, the paper feeding speed can be changed automatically according to the speed of the machine. With imported converter, PLC, rotary encoder, photoelectric switch and man machine interface, the machine is oriented design, easy operation and convenient repair.



6. This machine is good looking, neat and good sealing. The electric control system is equipped with photoelectric tracing circuit. When there is no candy at the start of the machine, the paper would stop at same time so that no paper is wasted.





Main parameters:

Power of main motor

0.75kw  380v

Power of brushing motor

4×60w  380v

Power of paper feeding motor

0.2kw  220v

Heating sealing pipe

0.15kw×6   24v

Air pressure

0.2-0.5Mpa

Production capacity

120pcs/min

External dimensions (mm)

2500×900×1500

Weight (kg)

1200

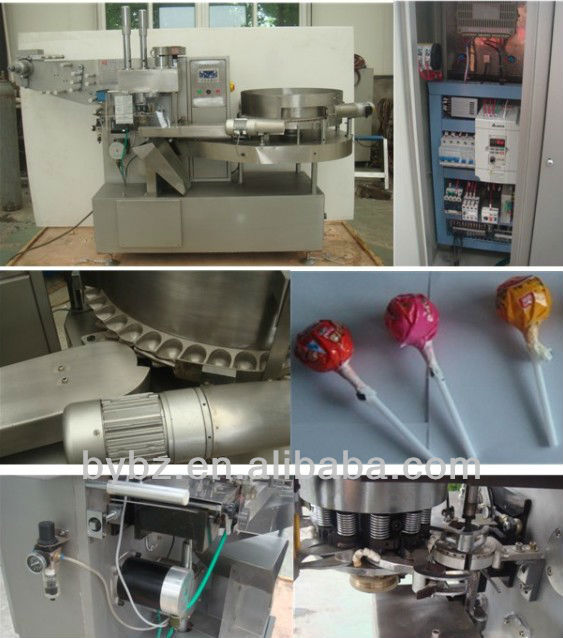

Machine pictures and sample:



YB-350 Advanced Automatic Lollipop Candy Packing Equipment (0086-13611835825)



Welcome to your inquiry!





Type:
Other
Condition:
New
Application:
Food
Packaging Type:
roll film
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
2.5KW
Place of Origin:
Shanghai China (Mainland)
Brand Name:
YB
Model Number:
YB-350
Weight:
1200kg
Dimension(L*W*H):
2500*900*1500
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
certificate:
CE
packing speed:
120pcs/min
controller:
PLC
Power of main motor:
0.75kw 380v
Power of paper feeding motor:
0.2kw 220v
Air pressure:
0.2-0.5Mpa
Production capacity:
120pcs/min
Weight (kg):
1200
